Xhorse Dolphin XP-005 Automatic Key Cutting Machine Work on IOS & Android with Built-in Battery

Xhorse Tools/ KeysHome/Xhorse Tools/ Keys

off

Xhorse Dolphin XP-005 Automatic Key Cutting Machine Work on IOS & Android with Built-in Battery

stars, based on 0 reviews
Item No.: SL437
Weight: 170000g

~~$ 1,988.00~~$ 1,945.00 / piece

Description
Customer Reviews

Xhorse Dolphin XP-005 is the latest portable automatic key cutting machine from Xhorse with built-in battery.
It has all the capabilities of the Condor XC Mini and works with a phone app and bluetooth connectivity.
It can cut 20 HU66 key blanks front and back from one battery pack.

Xhorse Dolphin XP-005 Automatic Key Cutting Machine

Xhorse Dolphin XP-005 is a portable machine with a small volume and light weight, which is particularly and carefully designed for locksmiths worldwide.

Xhorse Dolphin XP-005 Highlights:

1. It has all the capabilities of Condor XC-Mini, Build-in key database
2. Smart control and operation on APP
3. Portability and build-in Lithium battery with a long battery life
4. Support clamps M1, M2, M3(optional), M4(optional)
5. Support sided/track/dimple keys/tibbe keys/some household keys
6. Cutter and probe work in parallel
7. Aluminum structure
8. Imported ball screw with high precision
9. Cross rail with high rigidity
10. Free Online Update

Xhorse Dolphin XP-005

Xhorse Condor Dolphin XP005 Key Cutting Machine Features Detail:

APP smart cellphone operation
Built-in Bluetooth function, use smart cellphone or tablett to download APP, easy for smart operations

Portable and convenient
Compact structure design, perfect space utilization; built-in lithium battery one-time full charge, machine will cut 30-50 keys stable solid handle for safe and portable movement, perfect experience

Standard equipped 2 clamps M1 and M2 with powerful function
Supports Sided, Track, Dimple and Tibbe keys. Optional M3 clamp and M4 clamp are available, M3 Clamp is applicable to Ford FO21 & Citroen SX9 keys, M4 Clamp is applicable to single sided house-key.

Manufacture Process
All aluminum body structure, Manufactured by Germany-made DMG CNC machine;
American imported 3-Axis Precision Ball Screw with clearance function, ensures high precision cutting.

Online update
Free online update software, the latest update information will be released timely, 24hours support server online update, no need to send back for update.

Technical service
One-year warranty, free technical support, online service to provide remote control support

Xhorse Dolphin XP-005 Update Information:

Xhorse Dolphine XP-005 V1.5.2 (2021-05-25)

+ Condor machine add all key blank option (From brand-all key blank)
+ Add parts of Chinese car models
+ Add Nissan Kicks key data
+ Add Maserati GranCabrio/GranTurismo key data
+ Add Ford Territory key data
+ Add Hyundai verna key data
+ Add VW Tiguan L key data
+ Add Hyundai Mistra key data
+ Add Buick Regal key data
* Fix some key data issue

Xhorse Dolphin XP-005 V1.4.1 (2020-05-14)

* This version need to update firmware
* Add cutting preview function(Need use latest APP version)
* Add decoding and cutting optios of the worn HON66 (Need upgrade the database)
* Modify the cutting method of the external key universal key duplication
* Fix the Parameter micro-adjustfunction bug

Xhorse Dolphin XP-005 V1.4.0 (2020-03-28）

* This version need to update firmware
* Improve some cutting strategy
* Change standard double sided default tip cutting strategy
* Fix Electrical Conductivity Measurement bug
* Fixed cutting problem of 2 Track external
* Fix some universal key duplication bugs
Please Use Xhorse Update Kit to update.

Xhorse Dolphin XP-005 V1.3.8 (2020-01-13)

This version need to update fireware
Add "Cut by single-bitting" function(Not support internal track key blank)
Add "Parameter micro-adjust" function
Improve high level adjustment function, not need do clamp calibration every time after high level adjustment
Fix cutting depth not accurate problem
Fix HU66 EXT 9th slot width problem
Fix some universal key duplication bugs

Xhorse Dolphin XP-005 vs Condor XC-Mini Plus

Xhorse Dolphin XP-005 vs Condor XC-Mini Plus

Index	Dolphin XP-005	Condor XC-MINI Plus
Spindle	Mechanical shaft +60W DC motor (with a foreign model)” “Electric spindle brushless 300W, built-in angular contact bearing	Electric spindle brushless 300, built-in angular contact bearing
Transmission mechanism	“T-shaped screw + anti-backlash nut	Ball screw
guide	Roller guide	Cross-track
shell	Base aluminum alloy die-casting, the upper body is made of plastic shell and the body is made of integrated aluminum alloy die-casting.	Plastic outer casing body is formed by body alloying die casting
Fixture	Standard fixture	Two sets of standard fixtures
Manipulation	No touch screen, no built-in database	Quick start, with touch screen, built-in database
Offline operation	not support	stand by
Dedicated app	Support dedicated mobile phone APp	Support dedicated mobile APP
Built-in battery	Not supported, optional external battery	stand by
protecting mask	Simple protective cover	Comprehensive protection
VVD binding	not support	stand by
Cutting speed	1X SPEED	2X SPEED
weight	17kg	18kg
Warranty	1 year	3 years

How to Update Xhorse Dolphin XP-005 Database?

1) Enter Dolphin XP-005 main interface and click "Update"
2) Click "Database update"
3) If you find a new version,click "Update" and download the new version.
Click on "OK" after download database success
If cellphone connected by mobile internet data,a prompt saying that download maybe costs data fee,recommend downloading by WIFI.
Xhorse dolphin xp-005 database update

Xhorse Dolphin XP005 Key Cutting Machine Parameters:

Working Temperature:    -10~50℃
Input Voltage:                                12-24V
Battery Capacity:                            64.75wh
Cutting Power:                               100W
Standby Power:                              15W
Motor Rotation Speed:                   10000-13000RPM
Rated Torque:                                 0.15 Nm
USB Port:                                         USB2.0
Machine Dimension:                       315*218*270mm
Package Dimension:                       510*315*345mm
Net Weight:                                    15kg
Gross Weight:                                 18kg

Xhorse Dolphin XP-005 Parameters

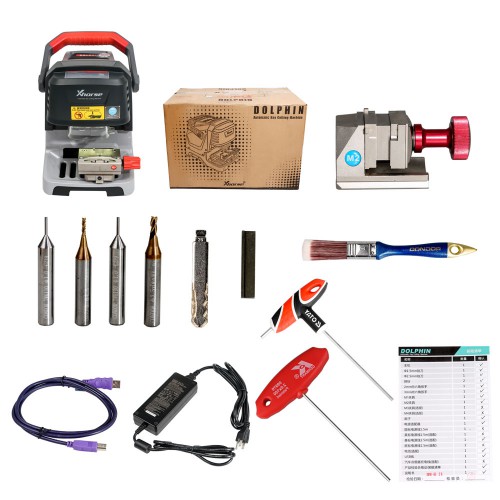

Xhorse Dolphin XP-005 Package List:

1pc x Condor Dolphin Main Machine
1pc x 2.5mm cutter
1pc x 1.5mm cutter
2pc x Probe
1pc x 2mm Hexagon bar wrench
1pc x 4mm Hexagon bar wrench
1pc x Power Adapter
1pc x Brush
1pc x Clamp M1 & Link Stopper
1pc x Clamp M2 & shim
1pc x Clamp M3 (Optional)
1pc x Clamp M4 (Optional)
1pc x Product Quality Certificate
1pc x User Manual
Xhorse Dolphin XP005 Package
