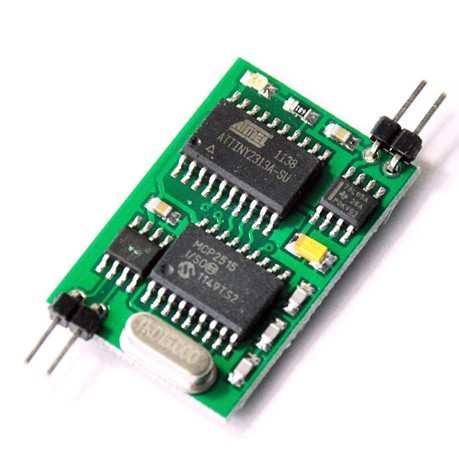

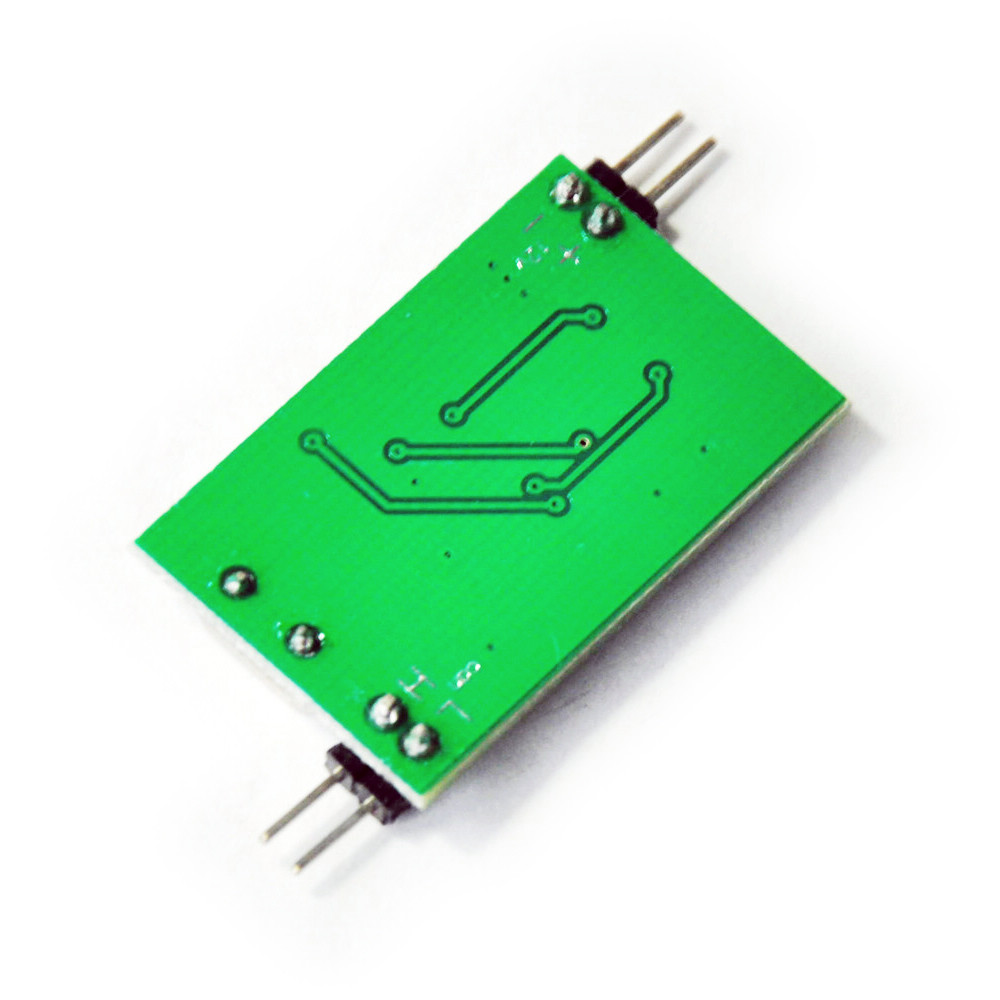

Renault CAN BUS Emulator for Instrument Cluster Repair

  • 12345 stars, based on 0 reviews
  • Item No.: A02066
  • Weight: 80g
$ 22.80$ 19.90 / piece
  • Quantity:

    0 items available

Renault CAN BUS Emulator for Instrument Cluster Repair

User Manual for Renault DASHBOARD CAN emulator


Descriptions ：


Simple connection-4 wires only: CAN Low, CAN High, +12v, GND.
After power on emulator turns on dashboard. If everything is connected correctly and there are no CAN faults RED LED
on emulator board is blinking.


DASHBOARD CONNECTOR:
Renault Scenic, Laguna
1 +12v
2 GND
29 CAN Low
30 CAN High

Renault Megane
1 CAN High
4 CAN Low
15 +12v
30 GND
