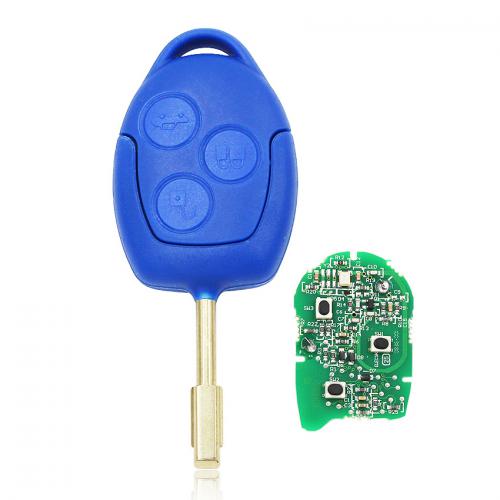

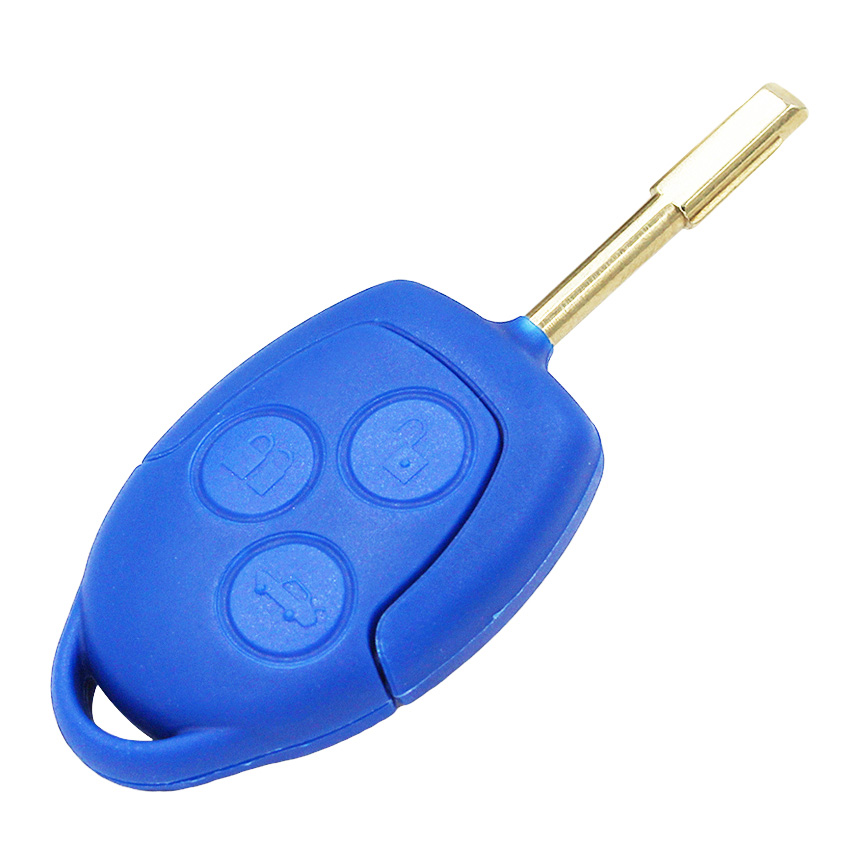

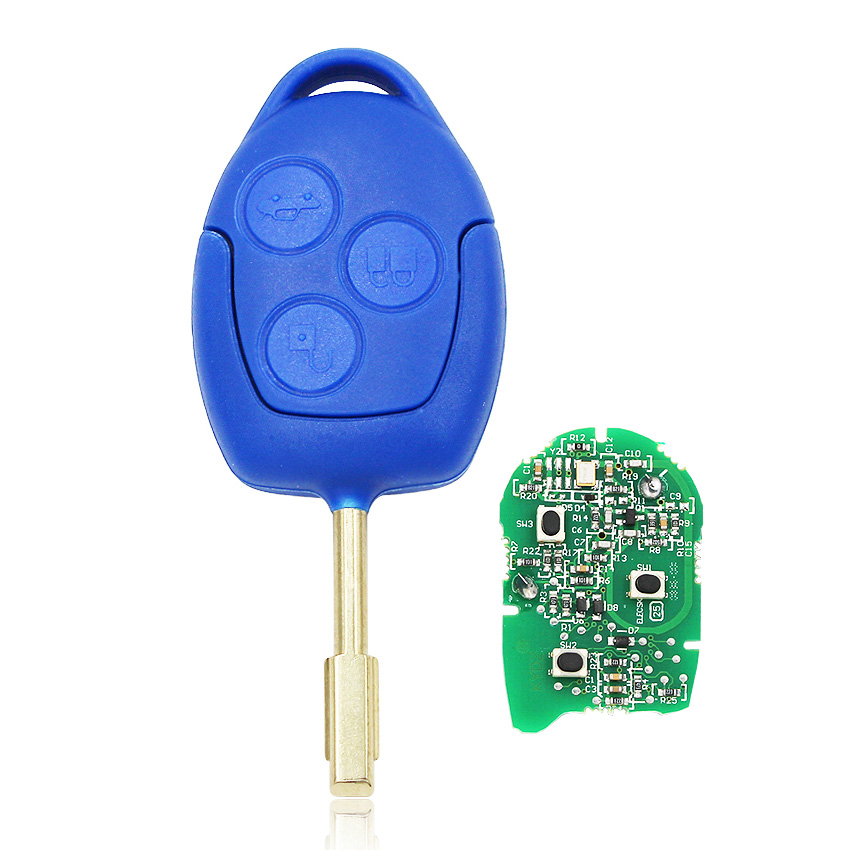

Remote Key FOB 3 Button 433MHz 4D63 Chip for Ford Transit WM VM 2006-2014 P/N: 6C1T15K601AG FO21

ID63 electronic chip

Part Ref: 1721051

Transponder Type: ID63 6F

Operating Frequency: 433.9 Mhz

Key Profile: FO21

This key comes complete with the required transponder chip / electronics. It can be supplied blank,

cut to key number or cut to a clear photo.

To find out more about our cutting service please see the ‘key cutting’ section below.

This remote will suit VM series F*ord Transit from 09/2006.  Part Number - 6C1T15K601AG.

Remotes work at 433MHZ, come with F*ord TX/CR ID63 6F Transponder and Uncut blade SFO21AP.

Notes about : programming of ford blue remote

1：

Please test if the key has right frequency and chip via device before programming.

2：After ODB device communicated with car, please choose the right car model on device and do “adding new key”, then please follow the device to program the new key.

Note:

Please don't program key chip (ignition function/starting car function) in advance.

After remote function is programmed, ignition function is available automatically.

If key chip programming happens before remote programming, this key will fail.

3：During remote programming, sometimes it will fail on some cars.

The reason may be the ignitioncoil is too old and weak so the new key could catch the signal from ignitioncoil.

So please take off the key head/blade,

and put the remote closed to the ignitioncoil as tightly as you can for programming.
